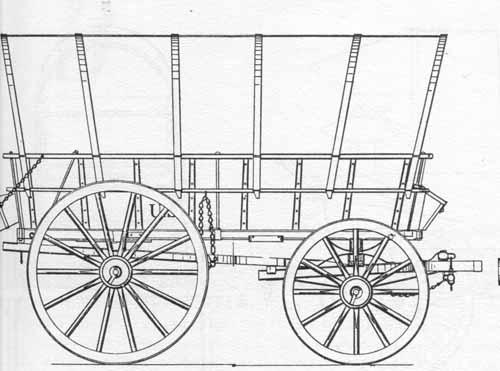

This drawings was taken
from a page in the Carriage Terminology, Smithsonian Institute Press 1998
because the print on the plans was too large to copy. You may order copies of
the book for $85 + $10 s/h but it is going out of print soon.
The plans are for
building a Civil War Covered wagon pulled by 6 mules, very similar to the photos
above. The plans were hand-drawn to scale. I put them on 2 very large sheets of
paper. It also comes with the Army Quartermaster description typed on 4 pages of
paper. The drawings and description were provided by the Carriage Museum of
America for me to duplicate.
$9 s/h in a tube or $5.00 folded.
No online ordering: Call
406-846-3686 during normal business hours to use a credit card number; mail
a check or money order in US funds to the address at the top of this page;
or you may use PayPal to
send the payment to my email address
