Stan Teitge |
|
These plans have been drafted to supply the drawings and specifications to help build a full size vehicle. |
| These may have full size dimensions but they were not intended for the novice builder. Some details may have inadvertently been left out.You should only use these plans as a guide line. We do not accept any responsibility or liability for the safety, structure or completion of any vehicles made from these plans. S/h Priority is $6 for one set or $2 more for any additional set if ordering more than once set of plans at a time. |
 |
Abbott Downing Mud Wagon
This set of plans include the full
size vehicle specification. The Scale 1 ½" = 12" or 1/8th scale.
Three pages of drawings 24" x 36" and 6 pages of specs. $95.00 |
 |
Buckboard 2 pages of drawings 11" x 17", 1/12th scale or 1 inch = 1 foot. This was the classical type of Buckboard as seen on many of the old westerns. There are no metal springs but a notation is provided in case the builder wants to add a spring seat. 2 sheets.$25.00 |
 |
Democrat
1/8th Scale - 4 pages of drawings
11" x 17" and 5 pages with full specification. 1/8th scale. $45.00 |
| no photo | Canopy Top for Democrat that
can be used on the Democrat show or any similar vehicle. There are 2 sheets
of drawings for a stationary top. 1/8th scale. $20 |
 |
Heavy Delivery Wagon -
Hitch wagon - 3 pages of drawings 24" x 36" and 8
pages with specifications. 1/8th scale. $65 |
 |
Light Delivery Wagon - 4 pages
of drawings 11" x 17" and 6 pages with specifications. 1/8th scale. $45 |
 |
McLaughlin Road Wagon 1910 4
pages of drawings 11" x 17" and 6 pages with specifications. 1/8th scale. $45 |
 |

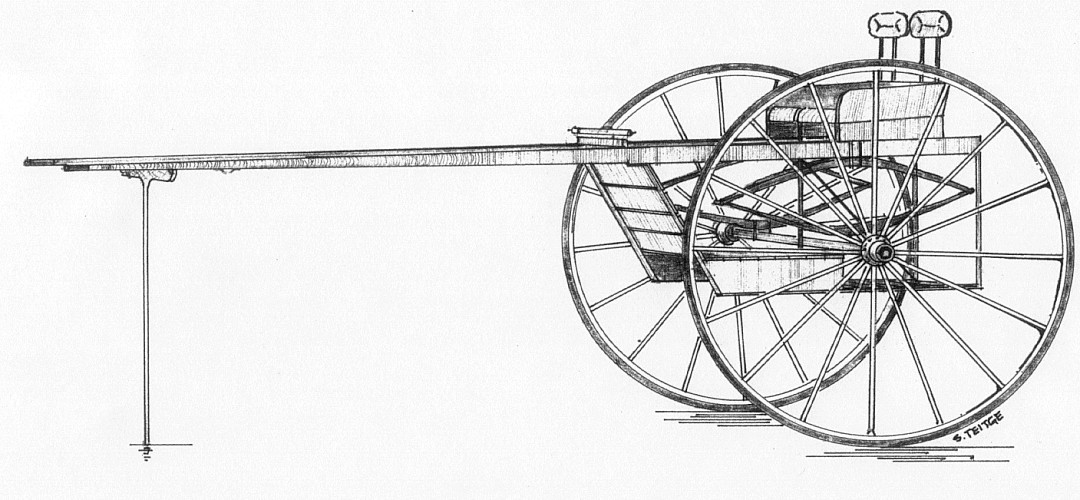

Meadowbrook Cart 3 pages of
drawings 11" x 17" and the Cart Chart to help you determine the size
vehicle, wheels etc to build for your horse's height. Scale is 1 inch
to the foot or 1/12th scale. $25 |
 |
Piano Box Buggy - 4 pages of
drawings 11" x 17" and 5 pages with specification. 1/8th scale. $45 |
 |
First Horse Drawn Pick up Truck
2 pages of drawings 24" x 36" and 5 pages with specifications. Not drawn to
scale but these plans include 5 pages with full specification. $65 |
 |
Meadowbrook Cart
1/12th scale. This is the typical Meadowbrook cart with the front seat that splits and folds for easy entry from the rear of the cart. 3 sheets. $25.00 |
 |
Cart Chart.
This chart will help you determine the length of
shafts, diameter of wheels and height of the cart seat - depending on the
size equine you will be driving to it. Measurements are given in inches
depending on the equines size in hands and inches. You may enlarge this and print it out for Free or order a copy for $1.00 |
Shipping and Handling on these plans are $5 for the first set and $1 each additional set.
To order books or plans you may send a check, money order or pay with Credit
|
See other plans by: Ivan Collins, John Thompson, Wagonmaster, Southwest Wagon, Borax, Windyhill |
